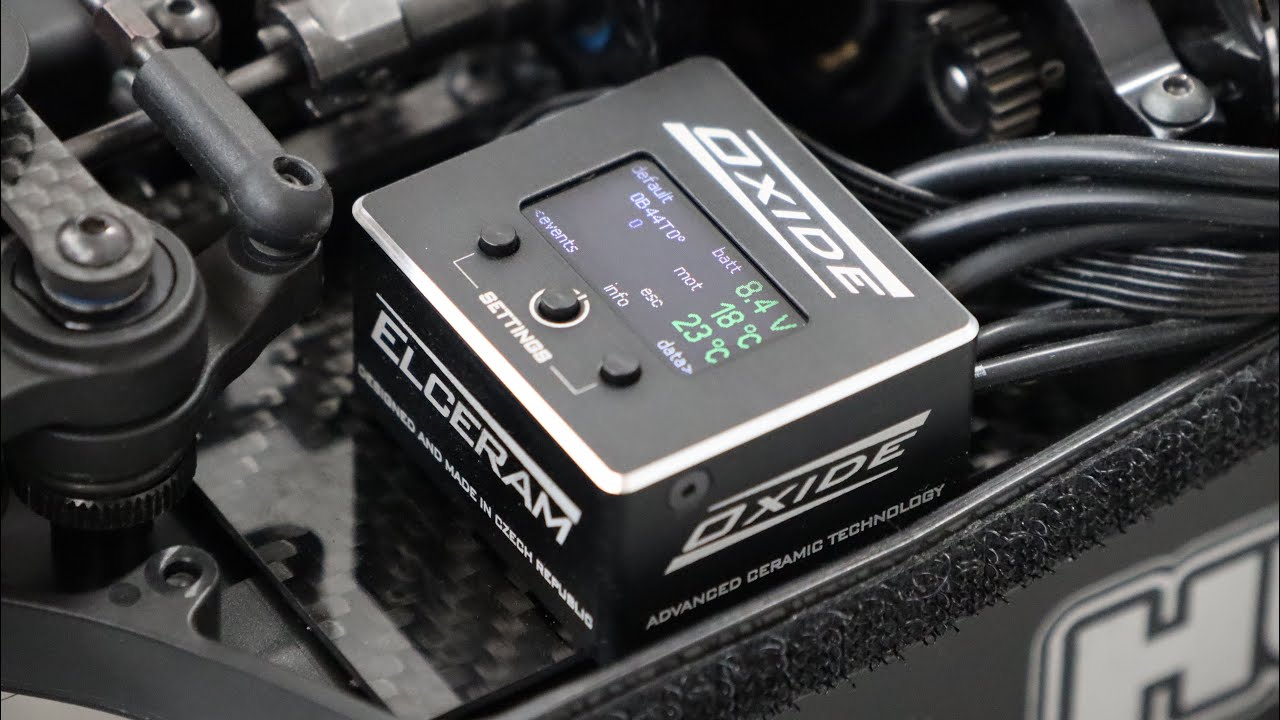

ELCERAM OXIDE 140A
ELCERAM ESC
RM950.00RM800.00
Out of stock
Features:
Developed especially for 1/10th professional RC cars. Buggy, Touring, Drift, etc.
Ideal solution for high level stock racing (standard, expert, open stock).
Suitable also for modified with motors from 6T up.
TFT LCD color display with resolution 160 x 80 pixels.
Size: 38,3 (L) x 34,3 (W) x 20 (H) mm.
Weight: 45 g without wires / 75 g with wires AWG14 - 180 mm.
Ultra low centre of gravity.
Power supply: 2S LiPo.
Current cont. / pulsed: 145 A / 1500 A.
BEC: 6 - 7,4 V adjustable, step 0,05 V.
Extreme low internal resistance based on silver conductive layer.
Advanced Cooling Technology based on Aluminium Oxide Ceramic Flat Cooler.
Designed for high level RC racing.
Zero Timing (Blinky Mode) supported.
For sensored BLDC motors from 6T up.
Functions:
Revolutionary easy Rx calibration.
Realtime monitoring: battery voltage, ESC and motor temperatures.
Self-diagnostic before the race: motor temperature, sensor cable, battery.
Post-race data evaluation.
Easy programming: throttle, brake, boost and turbo timing, hall angle, BEC and many other functions.
Continuous BEC volatge monitoring.
Continuous motor speed monitoring.
RPM limiter supported.
Race data logging, temperature and other curves, histograms and more.
Adjustable maintenance reminder for easy check.
No programming interface needed.
Thoroughly tested under race conditions.
Proven and NEW functions
Thanks to the display, you can have always overview about all the important data and events - before the race, during driving and after race. It is really quick to make a change in your settings and then you have immediate feedback, without any delay caused by connecting a control interface.
In adition to the proven ones, OXIDE 1/10 is endowed by great new and revolutionary functions:
adjustable BEC voltage from 6 - 7,4 V with step 0,05 V
revolutionary continuous BEC voltage monitoring
continuous motor speed monitoring
throttle sensitivity adjustable
minimum brake and drag brake independently adjustable
turbo timing instant function possible
RPM limiter adjustable from 10.000 rpm up to 60.000 rpm with drop function
graphs customazitation, record lenght, autoreset function, etc
