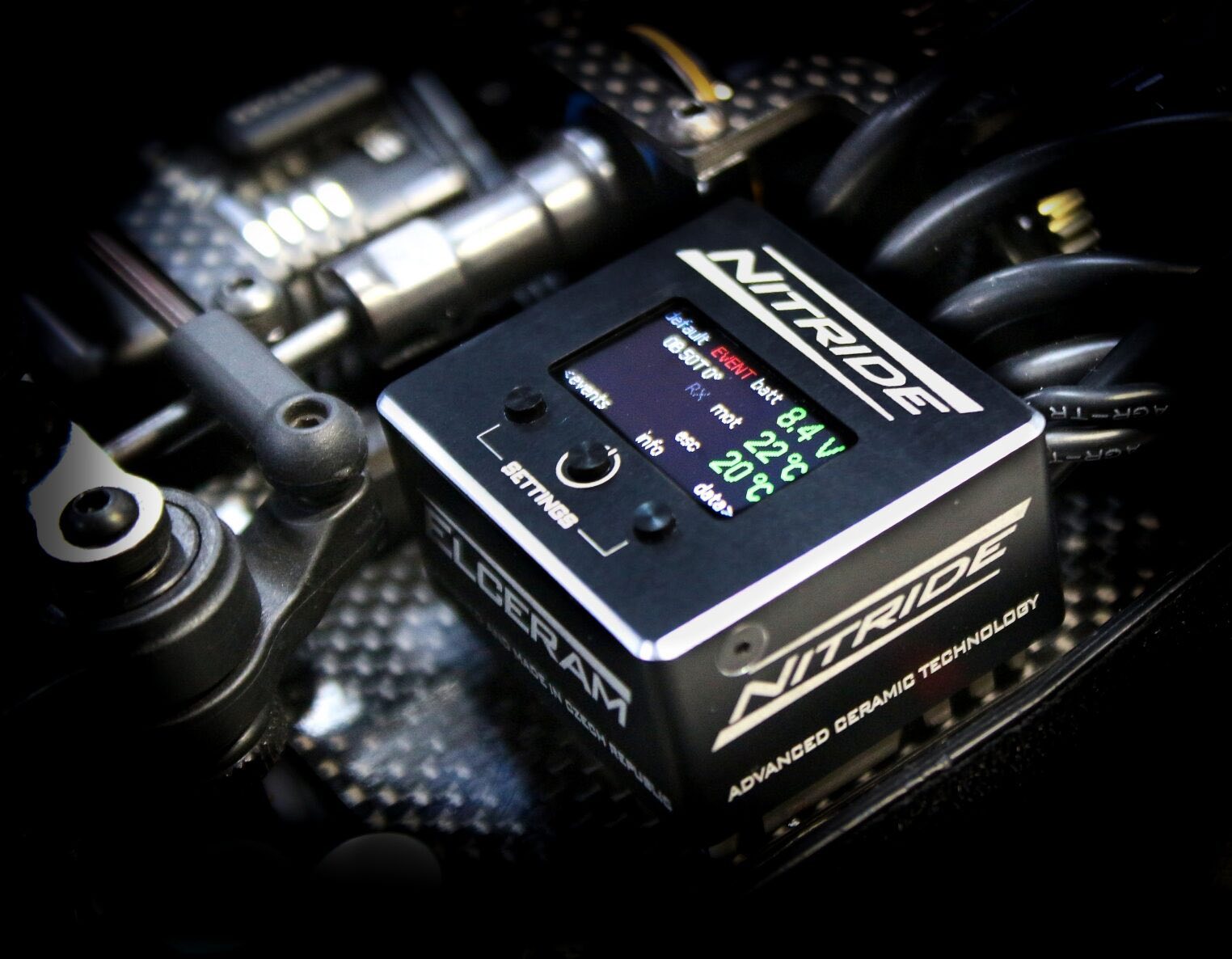

ELCERAM NITRIDE 180A ESC
ELCERAM ESC
RM1200.00RM999.00
Out of stock
Features:
Developed especially for 1/10th professional RC cars.
TFT LCD color display with resolution 160 x 80 pixels.
Size: 38,3 (L) x 34,3 (W) x 24,5 (H) mm.
Weight: 50 g without wires / 90 g with wires AWG13 - 180 mm.
70 % of weight located in bottom side of ESC.
Power supply: 2S LiPo.
Current cont. / pulsed: 180 A / 1500 A.
BEC: 7,4 V fixed, 4 A cont. / 10 A peak at 125 °C.
Extreme low internal resistance based on silver conductive layer.
Advanced Cooling Technology based on Aluminium Nitride Ceramic Cooler.
Designed for high level RC racing.
Zero Timing (Blinky Mode) supported.
For sensored BLDC motors from 4.5T up.
Functions:
Revolutionary easy Rx calibration.
Realtime monitoring: battery voltage, ESC and motor temperatures.
Self-diagnostic before the race: motor temperature, sensor cable, battery.
Post-race data evaluation.
Easy programming: throttle, brake, boost and turbo timing, hall angle and many other functions.
Race data logging, temperature and other curves, histograms and more.
Adjustable maintenance reminder for easy check.
No programming interface needed.
Advanced Cooling Technology
Advanced cooling technology based on Aluminium Nitride cooler, developed especially for NITRIDE, provides the ESC the excellent thermal conductivity higher than 160 W/mK and long-term resistance to high temperatures and loads.
MOSFETs transistors are cooled directly without any additional thermal resistance layer!
During the production, we used very thick layers of special materials like silver and copper for very low internal resistance and the newest technologies inspired by our production of power systems.
LCD Display
NITRIDE comes with a breakthrough in RC motor controlling - LCD color display. Thanks to this you can set all the parameters and check all data directly at your ESC, without need of any programming card or a mobile application. All you need is inside your ESC.
The use is really easy - by 3 buttons you can quickly set anything you need and one view is enough to check all parameters necessary for race. Simply. Quickly. Precisely.
